Cembre Insulated Pin Crimp Terminal

Cembre PVC insulated pin terminals, with conntectors suitable for 0.25-10mm (AGW 22-10) conductors. The funnel shaped PVC guides the conductor strands, preventing strand snagging. A rifled barrel provides improved contact with the conductor. Pin lengths range from 8-14mm. Crimp with Cembre HP3 ratchet crimper.

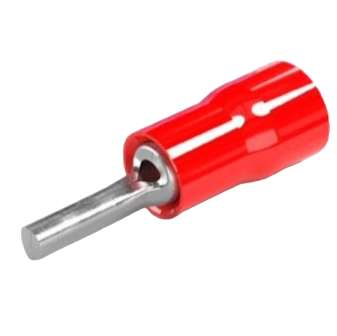

RF-P8 Red Pin Terminal Cembre 309017 - Box 100

RF-P8 Red Pin Terminal Cembre 309017 - Box 100

Price per Box 100: £5.81 (£6.97 Including VAT at 20%)


Condutor Size:0.25-1.5mm? (AWG 22-16)
Pin Length: 8.0mm

Cembre Code: 2051210

JPL Code: 309017

Technical Information

RF-P10 Red Pin Terminal Cembre 309018 - Box 100

RF-P10 Red Pin Terminal Cembre 309018 - Box 100

Price per Box 100: £5.81 (£6.97 Including VAT at 20%)


Condutor Size:0.25-1.5mm? (AWG 22-16)
Pin Length: 10.0mm

Cembre Code: 2051250

JPL Code: 309018

Technical Information

RF-P12 Red Pin Terminal Cembre 309019 - Box 100

RF-P12 Red Pin Terminal Cembre 309019 - Box 100

Price per Box 100: £6.17 (£7.40 Including VAT at 20%)


Condutor Size:0.25-1.5mm? (AWG 22-16)
Pin Length: 12.0mm

Cembre Code: 2051290

JPL Code: 309019

Technical Information

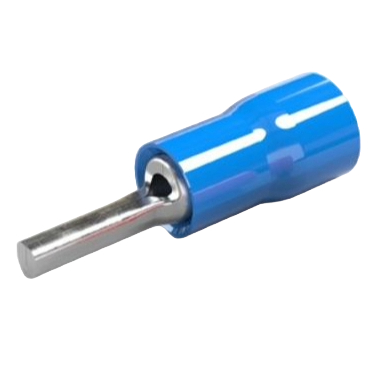

BF-P8 Blue Pin Terminal Cembre 309066 - Box 100

BF-P8 Blue Pin Terminal Cembre 309066 - Box 100

Price per Box 100: £6.52 (£7.82 Including VAT at 20%)


Condutor Size: 1.5-2.5mm? (AWG 16-14)
Pin Length: 8.0mm

Cembre Code: 2053210

JPL Code: 309066

Technical Information

BF-P10 Blue Pin Terminal Cembre 309067 - Box 100

BF-P10 Blue Pin Terminal Cembre 309067 - Box 100

Price per Box 100: £6.52 (£7.82 Including VAT at 20%)


Condutor Size: 1.5-2.5mm? (AWG 16-14)
Pin Length: 10.0mm

Cembre Code: 2053250

JPL Code: 309067

Technical Information

BF-P12 Blue Pin Terminal Cembre 309068 - Box 100

BF-P12 Blue Pin Terminal Cembre 309068 - Box 100

Price per Box 100: £6.69 (£8.03 Including VAT at 20%)


Condutor Size: 1.5-2.5mm? (AWG 16-14)
Pin Length: 12.0mm

Cembre Code: 2053290

JPL Code: 309068

Technical Information

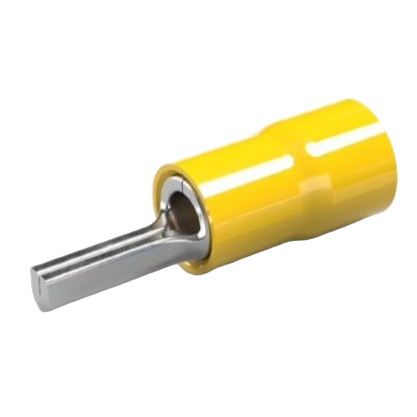

GF-P10 Yellow Pin Terminal Cembre 309119 - Box 100

GF-P10 Yellow Pin Terminal Cembre 309119 - Box 100

Price per Box 100: £11.19 (£13.43 Including VAT at 20%)


Condutor Size: 4-6mm? (AWG 12-10)
Pin Length: 10.0mm

Cembre Code: 2055310

JPL Code: 309119

Technical Information

GF-P12 Yellow Pin Terminal Cembre 309120 - Box 100

GF-P12 Yellow Pin Terminal Cembre 309120 - Box 100

Price per Box 100: £11.19 (£13.43 Including VAT at 20%)


Condutor Size: 4-6mm? (AWG 12-10)
Pin Length: 12.0mm

Cembre Code: 2055350

JPL Code: 309120

Technical Information

GF-P14 Yellow Pin Terminal Cembre 309121 - Box 100

GF-P14 Yellow Pin Terminal Cembre 309121 - Box 100

Price per Box 100: £11.19 (£13.43 Including VAT at 20%)


Condutor Size: 4-6mm? (AWG 12-10)
Pin Length: 14.0mm

Cembre Code: 2055370

JPL Code: 309121

Technical Information
